產品介紹 PRODUCT LIST
TSE Twin screw extruder

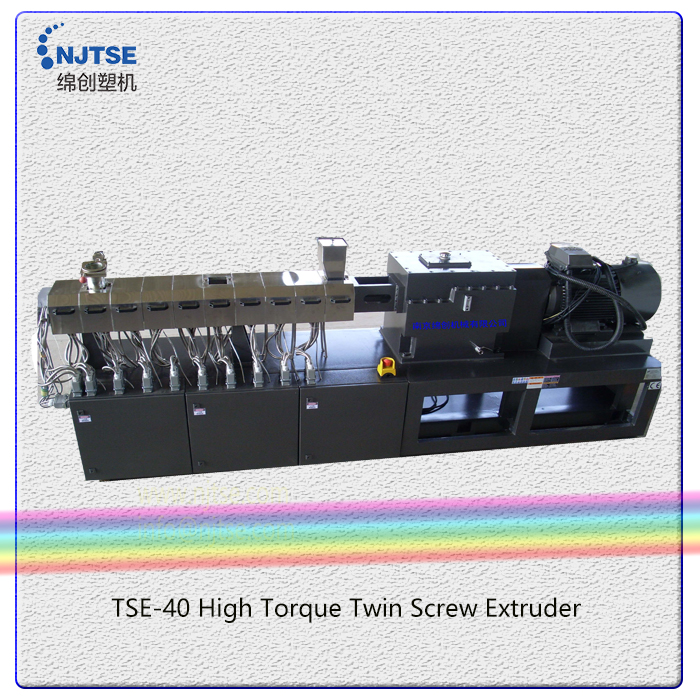

當前位置： 首頁 > 產品展示TSE-40 High torque twin screw extruder
產品型號：TSE-40
High torque and output design
Technical Parameter:
|
Model# 型號 |
Screw Diameter 螺桿直徑 （mm） |
Driving Motor Power 驅動電機功率 （kw） |
Screw Speed 螺桿轉速 （rpm） |
Optional L/D 可選長徑比 |
Output 生產能力 (kg/hr) |
| TSE-26 | 25 | 5.5 | 500 | 20-48 | 1-2 |
| 7.5 | 500 | 20-48 | 2-5 | ||
| 15 | 600 | 20-48 | 5-10 | ||
| 22 | 900 | 20-48 | 10-20 | ||
| 30 | 1200 | 20-48 | 20-30 | ||
| TSE-32 | 32 | 11 | 500 | 20-48 | 20-30 |
| 15 | 600 | 20-48 | 20-40 | ||
| 22 | 900 | 20-48 | 40-50 | ||
| 65 | 1200 | 20-48 | 50-80 | ||
| TSE-40 | 40 | 30 | 500 | 20-48 | 100-150 |
| 45 | 600 | 20-48 | 150-200 | ||
| 55 | 600 | 20-48 | 200-300 | ||
| 132 | 1200 | 20-48 | 300-350 | ||
| TSE-50 | 50 | 45 | 500 | 20-58 | 200-300 |
| 75 | 600 | 20-68 | 400-500 | ||
| 132 | 600 | 20-68 | 500-700 | ||
| 200 | 1200 | 20-68 | 700-800 | ||
| TSE-58 | 58 | 110 | 500 | 20-68 | 600-800 |
| 160 | 600 | 20-68 | 700-800 | ||
| 250 | 900 | 20-68 | 800-900 | ||
| 315 | 1200 | 20-68 | 800-1000 | ||
| TSE-70 | 70 | 160 | 600 | 20-72 | 600-800 |
| 250 | 600 | 20-72 | 800-900 | ||
| 355 | 900 | 20-72 | 800-1000 | ||
| 710 | 1200 | 20-72 | 1000-1200 | ||
| TSE-92 | 92 | 250 | 500 | 20-68 | 600-800 |
| 355 | 600 | 20-68 | 700-800 | ||
| 415 | 600 | 20-68 | 800-1000 | ||
| 710 | 600 | 20-68 | 1000-1200 | ||
| TSE-119 | 118 | 355 | 300 | 20-68 | 600-800 |
| 415 | 300 | 20-68 | 700-800 | ||
| 550 | 300 | 20-68 | 800-1000 | ||
| 960 | 400 | 20-68 | 1000-1200 | ||
| TSE-133 | 133 | 550 | 300 | 20-64 | 1000-1200 |
| 710 | 300 | 20-64 | 1200-1500 | ||
| 960 | 400 | 20-64 | 1500-2000 | ||
| 1400 | 400 | 20-64 | 1500-3000 |
If you want to send inquriy to us about the compounding and extrusion lines, plese kindly provide the following information, which will be much helpful and effetive for our further discussion:
1) What material you want to process?
2) What capacity you expect ? (kg/hr or kg/24hrs)
3) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; .
(We only provide 3P, because our machines are all for industrial use,not for family.)
Thank you so much for your trust and enquiry, we will quote it asap.
Then our communication will be more efficient.
