TSE Twin screw extruder

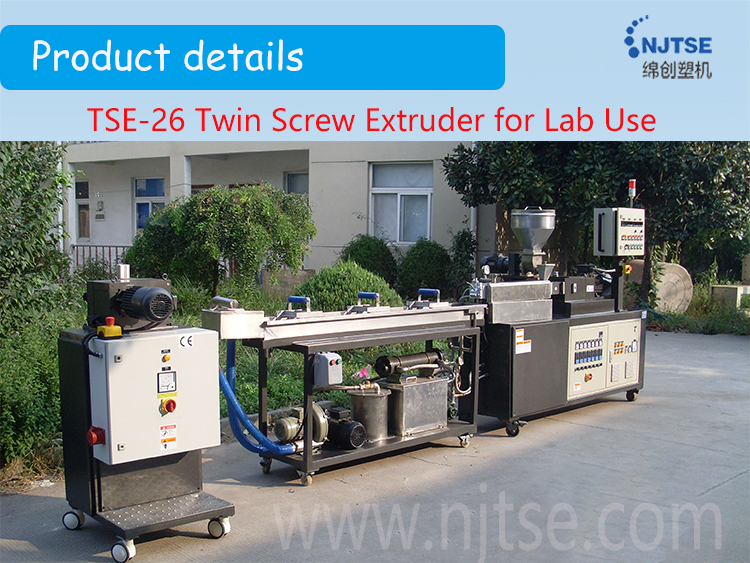

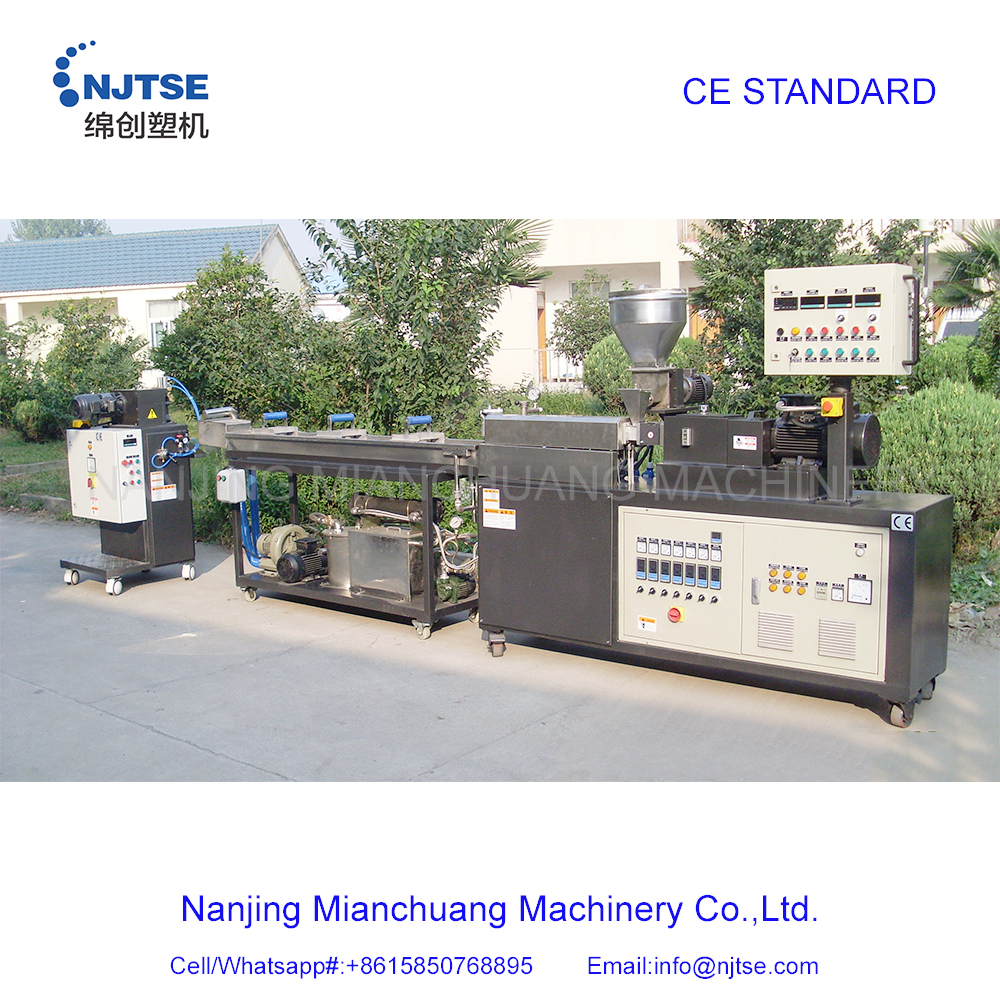

當前位置： 首頁 > 產品展示TSE-26 twin screw extruder for laboratory use
產品型號：TSE-26
1.High performance compact twin screw extruder for laboratory use with a combination of high performance and easy operation.
2.Wide variaty of Auxiliary eqiupment, such as loss in weight feeders, side feeders, pelletizing system etc.
Main specification of small twin screw extruder for Laboratory use:
|
Model# 型號 |
Screw Diameter 螺桿直徑 （mm） |
Driving Motor Power 驅動電機功率 （kw） |
Screw Speed 螺桿轉速 （rpm） |
Optional L/D 可選長徑比 |
Output 生產能力 (kg/hr) |
| TSE-26 | 25 | 5.5 | 500 | 20-48 | 1-2 |
| 7.5 | 500 | 20-48 | 2-5 | ||
| 15 | 600 | 20-48 | 5-10 | ||
| 22 | 900 | 20-48 | 10-20 | ||
| 30 | 1200 | 20-48 | 20-30 | ||
| TSE-32 | 32 | 11 | 500 | 20-48 | 20-30 |
| 15 | 600 | 20-48 | 20-40 | ||
| 22 | 900 | 20-48 | 40-50 | ||
| 65 | 1200 | 20-48 | 50-80 | ||
| TSE-40 | 40 | 30 | 500 | 20-48 | 100-150 |
| 45 | 600 | 20-48 | 150-200 | ||
| 55 | 600 | 20-48 | 200-300 | ||
| 132 | 1200 | 20-48 | 300-350 |
