TSE平行同向雙螺桿擠出機
當前位置： 首頁 > 產品展示TSE-50高扭矩平行雙螺桿擠出機
產品型號：TSE-50

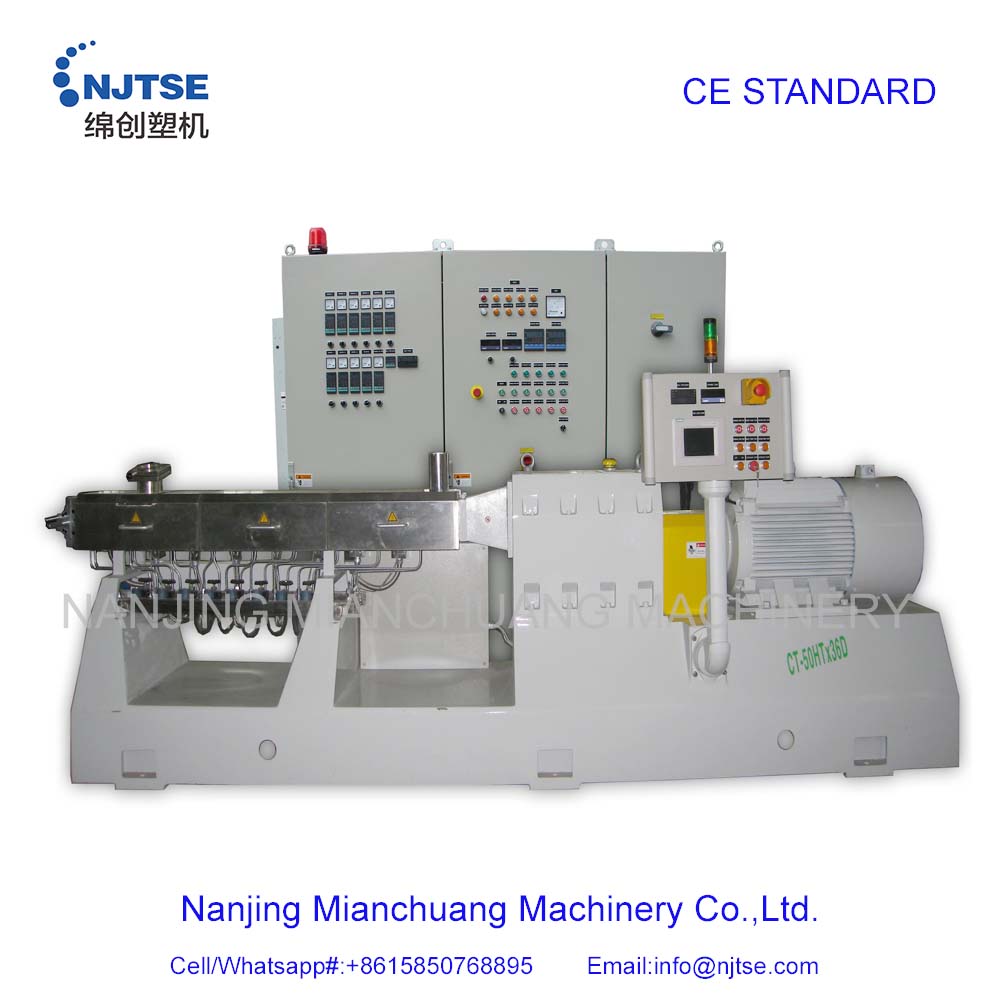

50高扭矩平行雙螺桿擠出機
高扭矩，大產量，適用于多種塑料的改性、增強、色母、工程塑料等造粒生產
產品參數
| 型號 |
螺桿直徑 （mm） |
驅動電機功率 （kw） |
螺桿轉速 （rpm） |
可選長徑比 |
生產能力（kg/hr） |
| TSE-26 | 25 | 5.5 | 500 | 20-48 | 1-2 |
| 7.5 | 500 | 20-48 | 2-5 | ||
| 15 | 600 | 20-48 | 5-10 | ||
| 22 | 900 | 20-48 | 10-20 | ||
| 30 | 1200 | 20-48 | 20-30 | ||
| TSE-32 | 32 | 11 | 500 | 20-48 | 20-30 |
| 15 | 600 | 20-48 | 20-40 | ||
| 22 | 900 | 20-48 | 40-50 | ||
| 65 | 1200 | 20-48 | 50-80 | ||
| TSE-40 | 40 | 30 | 500 | 20-48 | 100-150 |
| 45 | 600 | 20-48 | 150-200 | ||
| 55 | 600 | 20-48 | 200-300 | ||
| 132 | 1200 | 20-48 | 300-350 | ||
| TSE-50 | 50 | 45 | 500 | 20-58 | 200-300 |
| 75 | 600 | 20-68 | 400-500 | ||
| 132 | 600 | 20-68 | 500-700 | ||
| 200 | 1200 | 20-68 | 700-800 | ||
| TSE-58 | 58 | 110 | 500 | 20-68 | 600-800 |
| 160 | 600 | 20-68 | 700-800 | ||
| 250 | 900 | 20-68 | 800-900 | ||
| 315 | 1200 | 20-68 | 800-1000 | ||
| TSE-70 | 70 | 160 | 600 | 20-72 | 600-800 |
| 250 | 600 | 20-72 | 800-900 | ||
| 355 | 900 | 20-72 | 800-1000 | ||
| 710 | 1200 | 20-72 | 1000-1200 | ||
| TSE-92 | 92 | 250 | 500 | 20-68 | 600-800 |
| 355 | 600 | 20-68 | 700-800 | ||
| 415 | 600 | 20-68 | 800-1000 | ||
| 710 | 600 | 20-68 | 1000-1200 | ||
| TSE-119 | 118 | 355 | 300 | 20-68 | 600-800 |
| 415 | 300 | 20-68 | 700-800 | ||
| 550 | 300 | 20-68 | 800-1000 | ||
| 960 | 400 | 20-68 | 1000-1200 | ||
| TSE-133 | 133 | 550 | 300 | 20-64 | 1000-1200 |
| 710 | 300 | 20-64 | 1200-1500 | ||
| 960 | 400 | 20-64 | 1500-2000 | ||
| 1400 | 400 | 20-64 |
1500-3000 |
