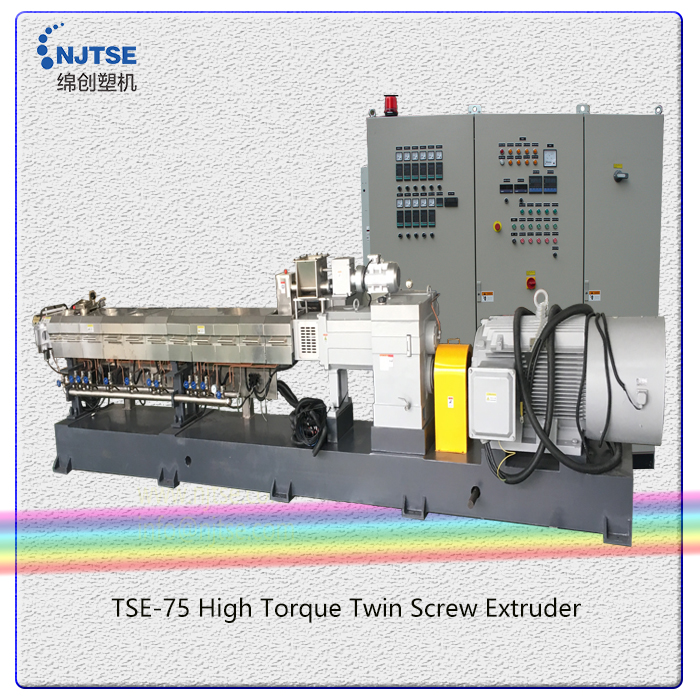

TSE-75 High Torque Co-rotating Twin Screw Extruder

產品型號：TSE-75

In the same direction parallel twin screw extruder, the screw is designed and manufactured by the principle of building blocks.According to the processing material system and the formulation of the process, the ratio of length to diameter, cylinder structure, screw arrange-ment, mesh changing structure, exhaust quantity location, feeding mode, cutting mode and electric control mode can be optimized and configured reasonably. To achieve multi-functional and versatile use to adapt to the processing of polymer materials.

Typical Application:filling modification, glass fiber (carbon fiber) reinforced rubber blend, various types of master-batch, plastic alloy, functional masterbatch, all kinds of cable materials,reaction extrusion,devolatilization, powder coating, etc.

Technical Parameter:

Model# 型號	Screw Diameter 螺桿直徑	Driving Motor Power 驅動電機功率	Screw Speed 螺桿轉速	Optional L/D 可選長徑比	Output 生產能力 (kg/hr)
TSE-26	25	5.5	500	20-48	1-2
		7.5	500	20-48	2-5
		15	600	20-48	5-10
		22	900	20-48	10-20
		30	1200	20-48	20-30
TSE-32	32	11	500	20-48	20-30
		15	600	20-48	20-40
		22	900	20-48	40-50
		65	1200	20-48	50-80
TSE-40	40	30	500	20-48	100-150
		45	600	20-48	150-200
		55	600	20-48	200-300
		132	1200	20-48	300-350
TSE-50	50	45	500	20-58	200-300
		75	600	20-68	400-500
		132	600	20-68	500-700
		200	1200	20-68	700-800
TSE-58	58	110	500	20-68	600-800
		160	600	20-68	700-800
		250	900	20-68	800-900
		315	1200	20-68	800-1000
TSE-70	70	160	600	20-72	600-800
		250	600	20-72	800-900
		355	900	20-72	800-1000
		710	1200	20-72	1000-1200
TSE-92	92	250	500	20-68	600-800
		355	600	20-68	700-800
		415	600	20-68	800-1000
		710	600	20-68	1000-1200
TSE-119	118	355	300	20-68	600-800
		415	300	20-68	700-800
		550	300	20-68	800-1000
		960	400	20-68	1000-1200
TSE-133	133	550	300	20-64	1000-1200
		710	300	20-64	1200-1500
		960	400	20-64	1500-2000
		1400	400	20-64	1500-3000

If you want to send inquriy to us about the compounding and extrusion lines, plese kindly provide the following information, which will be much helpful and effetive for our further discussion:

1) What material you want to process?

2) What capacity you expect ? (kg/hr or kg/24hrs)

3) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; .

(We only provide 3P, because our machines are all for industrial use,not for family.)

Thank you so much for your trust and enquiry, we will quote it asap.

Then our communication will be more efficient.
